The Evolution of the YolkFan™ as the Standard for Measuring Poultry Pigmentation

Humans have been consuming eggs and poultry products for thousands of years. In Jared Diamon’s 1997 classic Guns, Germs, and Steel: The Fates of Human Societies, poultry, and specifically Gallus gallus (the red junglefowl), is cited as one of the most important factors that enabled civilization to flourish in Asia (it is believed that Gallus gallus comes originally from the forests of south-east Asia); and the species was cited in Ancient Greece as early as the 5th century B.C. (A. Lawler and J. Adler, 2012). However, we can safely assume that egg consumption started earlier in our collective history, when eggs were collected from wild birds to supplement the diet of our forefathers. Eggs in nature are naturally well pigmented, given that female birds will transfer their reserve of carotenoids to the egg in order to increase the hatchability and survival of the chick (McGraw, et al., 2005). When eggs were incorporated in the diet of humans, they were expensive delicacies, and the yolk was expected to be orange as a sign of quality.

The attraction of bright-colored eggs

One of the most exquisite representations of a deeply colored yolk is at the center of  “Old Woman Frying Eggs”, a picture painted by Diego Velázquez in 1618 which todays hangs in the National Gallery of Scotland (Figure 1). The dramatic play of light and shade allows the faces of the boy and the old woman to send a direct question to the viewer about what were they thinking as they interact without looking at each other. It is a masterpiece in which eggs are only an excuse for the psychological play of the scene – but what an excuse! They are represented in a dramatic shade of orange symbolizing their status as a premium food and a perfect focal point for the whole composition. People like bright-colored eggs.

Figure 1. Old Woman Frying Eggs by Diego Velázquez, 1618 (National Gallery of Scotland)

The use of carotenoids in post-War poultry diets

After the World War II, the spread of intensive farming methods accelerated, and with it, egg production. Poultry feed was wheat-based in Europe. However, the main problem was the color of the yolks, which were not yellow enough for the taste of the European consumer  The yolk color depends its carotenoid content, in terms of quantity and type; and this is highly influenced by the type of feed, as described by Hughes and Payne as far back as 1937. It was clear, then, that if the yolk color were to be intensified in a natural way, it would be necessary to include carotenoids in the feed of the laying hen. Roche consequently examined the possible use of nature-identical carotenoids, produced by industrial methods, as feed additives (Isler et al., 1956). By 1956, the German egg market was surprised at the appearance of the first yolks pigmented with synthetic carotenoids. The innovation was a success, giving consumers the opportunity to enjoy eggs with a vibrant shade of orange in the winter, just as they were in the summer, when hens have access to plenty of green vegetation (an excellent source of carotenoids).  The addition of beta-carotene, canthaxanthin and, later, apo-ester became a fundamental element in successful egg production and marketing worldwide.  (On a side note, the first ever synthetic canthaxanthin, produced by F. Hoffman-La Roche, was partially responsible for the first ever successful flamingo breeding event in captivity, which occurred at Basel Zoo in 1958.)

The development of the Yolk Color Fan

However, as with any other productive activity, it was necessary to measure the success pigmentation programs, and the only way to do this was by evaluating yolk color in an objective and consistent way across the value chain. This was quite a task, as described in 1970 by K. Streiff,  an agronomist working for Roche, when he outlined the journey towards the first ever Yolk Color Fan. The ways available for measuring color at that time were either subjective and inconsistent (DIN-Tables, Heiman-Carver Rotor, or the Lovibond tintometer), cumbersome (the NEPA system), or else made use of light absorption of the yolk mass in a photometer. Neither of these methods were user-friendly for poultry producers, nor were they consistent and objective, so Roche’s Art Department of Roche commenced an initiative to collect  eggs from all over the world (imagine coordinating that daunting task in the late 1950s!) and trying to reproduce the color of the various yolks in combinations of round, oval, square and elongated shapes of wood or plastic. The result was the first ever Yolk Color Fan, which was produced  in 1956, with 12 egg-yolk shades, each on a separate blade. The color sheets were spray-dyed press-board lamellae of 3 cm x 16 cm. The paint was blended by hand, and the match was checked by mere visual comparison. This first fan was distributed in a limited fashion, but it played a critical role in establishing the basis of a standardized system for measuring yolk color from the farm to the consumer’s kitchen table (Steinegger and Zanetti, 1957). The situation changed when apo-ester became available for yolk pigmentation, since it was evident that a wider range of orange-yellow hues was  available and therefore the 12-blade version of the fan was no longer enough.

From the Roche to the DSM Yolk Color Fan

The 1965 edition of the Yolk Color Fan contained 15 colors and was based on the  “tristimulus values” of the standard C.I.E. system of 1931, as described in the classic paper by Vuilleumier in 1969. A “yolk color band” was constructed as the range of hues in to which all the desirable yolk colors known can be placed, from a very pale shade to the most intensive hue. This version of the fan grew in acceptance, and despite minor corrections in 1984 (involving better colorimetric and printing techniques) it is still regarded as the standard guide to egg yolk color around the globe, being published in various versions and languages (Figure 2).

In 2003, Roche’s Vitamins & Fine Chemicals Division was acquired by DSM B.V. and renamed DSM Nutritional Products. From that years, production of the Roche Yolk Color Fan ceased that year, making way for production of the DSM Yolk Color Fan (Figure 3), the successor to this long tradition of tools for measuring yolk color. This edition of the fan helped to launch the concept of MaxiChick® , by measuring the color of the yolk of breeders in order to measure the deposition of canthaxanthin in the yolk with the subsequential influence on fertility, hatchability and chick vitality (Figure 4). This is also reflected in the color of the shanks.

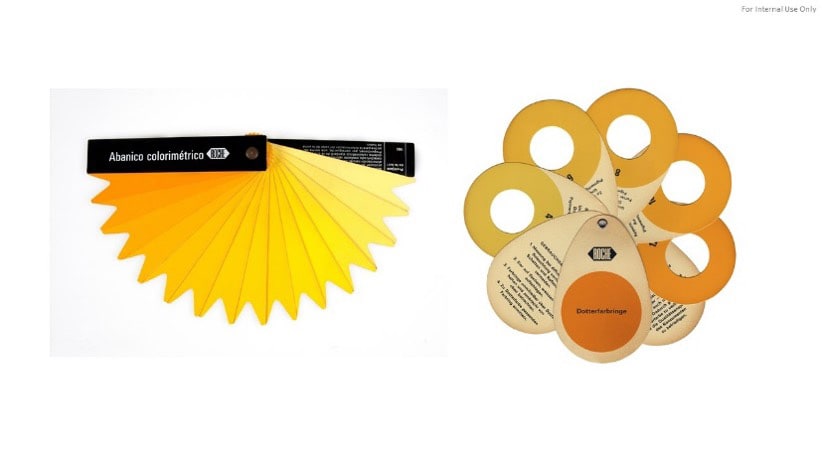

Figure 2. The Roche Yolk Color Fan

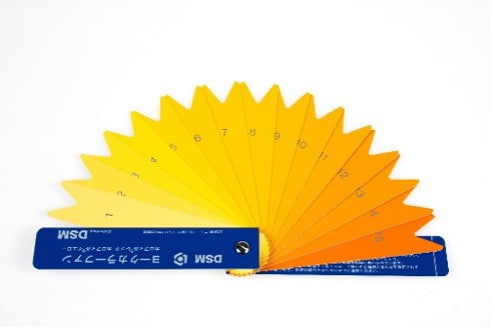

Figure 3. The DSM Yolk Color Fan

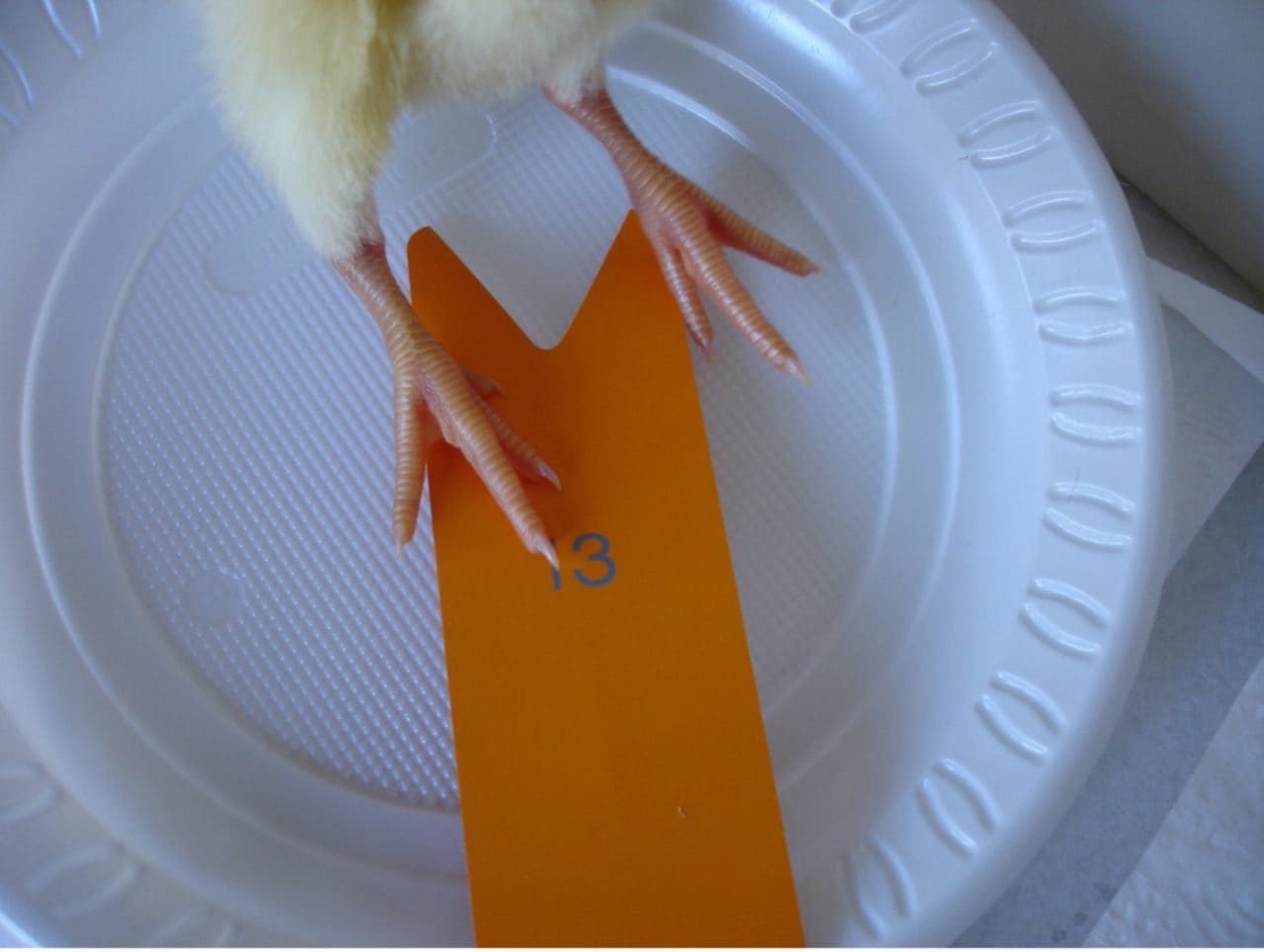

Figure 4. The DSM Yolk Color Fan being used to measure tarso pigmentation in day-old chicks

The 16-blade YolkFan™

In 2016, in response to requests from customers in Japan and other countries,  a blade number 16 was developed, reflecting the growing requirement of the market for a deeper shade of orange in the yolk (Hayakawa, 2015). Under the guidance of Dr. Umar-Faruk, scientists at DSM’s Animal Nutrition & Health Nutrition Innovation Center in Village-Neuf, France, replicated all the colors of the yolk (Figure 5) from 1 to 16, in order for a team in DSM’s carotenoid laboratory in Kaiseraugst,  Switzerland, led by J. Schierle to measure and objectively calibrate the color of the yolks and translate them into ink formulations that printed with extreme accuracy. This success led to the publication of the current (2016) yolk pigmentation guidelines, together with the new and renamed 16-blade YolkFan™. David Yao in China (2016) reported the successful use of the YolkFan™ in grading the shank pigmentation of chicks and older hens in China.

At the same time that the YolkFan™ was being developed, DSM was entering into a partnership with the Company NIX from Canada to develop the digital YolkFan™, which was launched in 2017 (Miranda, 2017) to provide an objective, consistent and reliable tool to measure egg yolk pigmentation. digital YolkfanTM - DSM color fans . This device (Figure 6) works with a smartphone in order to measure, capture and save color data related to yolk in terms of L*a* b* color system and the equivalent YolkFan™ color. Since its launch, the digital YolkFan™ has achieved a high level of acceptance and shown good consistency and reliability.

The YolkFan™ App

The evolution continues and in 2021, DSM is launching the YolkFan™ App that will enable users of the digital YolkFan™ to operate across different farms and settings using a singular device. The YolkFan™ App makes it possible to update pigmentation data on the fly, pull out statistics by farm or time of year, detect pigmentation problems early on, and speed up the decision-making process, delivering tangible, measurable, reliable and consistent benefits in terms of cost reduction and value added.

The journey of the YolkFan™ and the Carophyll® range of products is a long and illustrious one. At DSM, we are proud to build on this history with our science-based innovations, consistent product quality and committed customer service to the global poultry industry as we continue to deliver the premier portfolio carotenoid products in the animal nutrition industry.

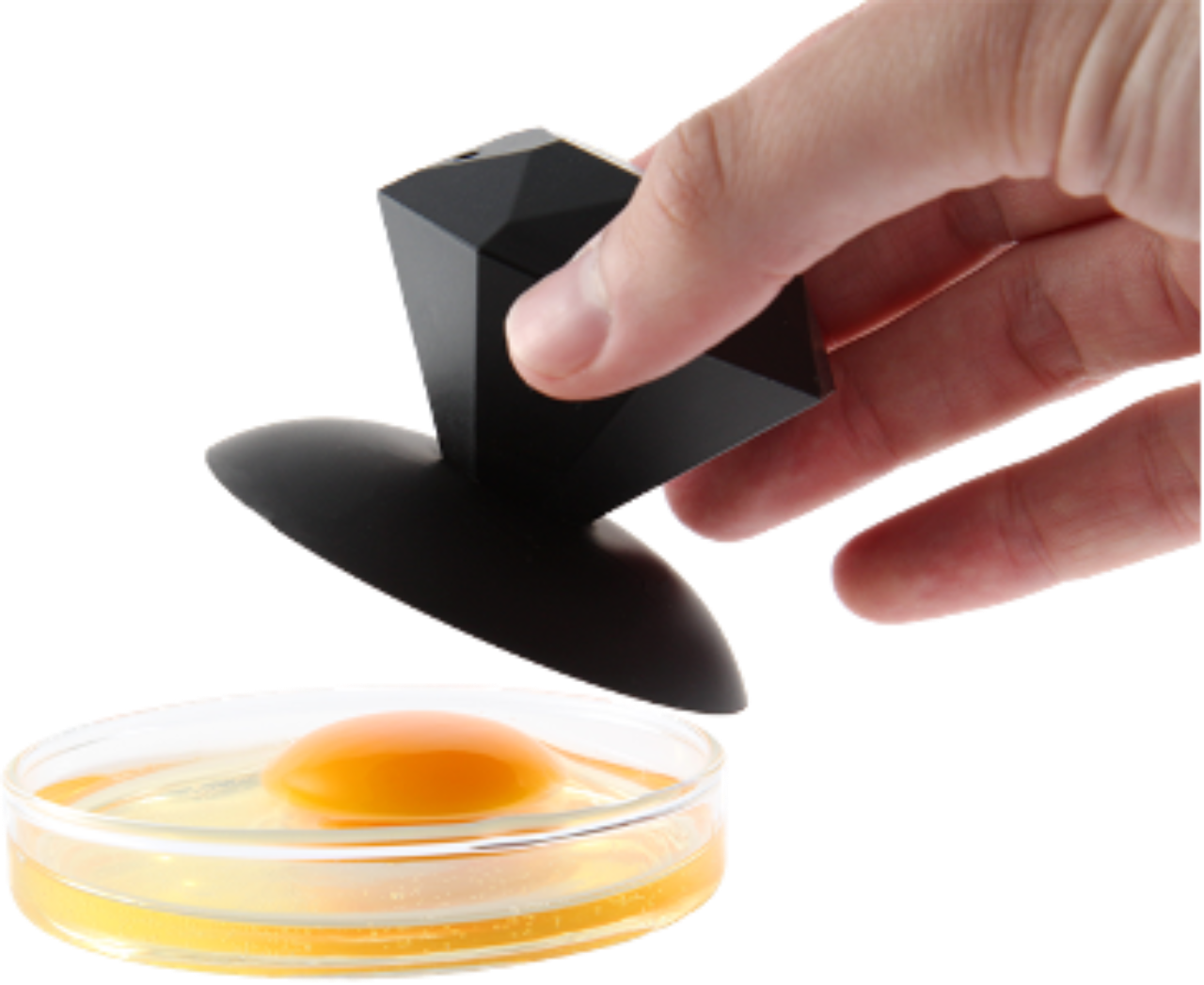

Figure 5. The digital YolkFan™

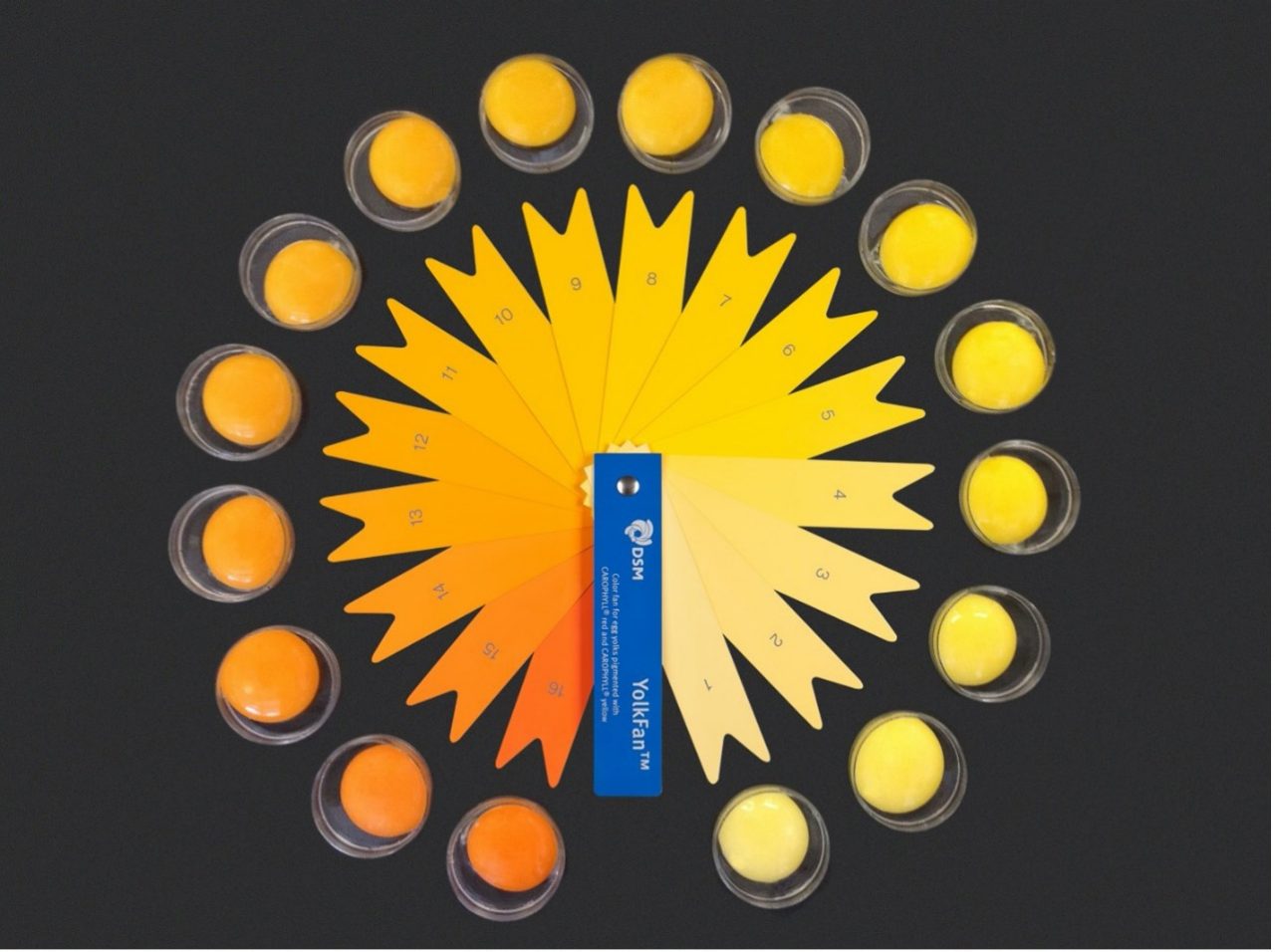

Figure 6. The 2016 DSM YolkFan™


  1. Lawler A, Adler J, 2012.
  2. Basel Zoo: 20 flamingo chicks and 55 years of flamingo breeding at Basel Zoo (
  3. Hayakawa, T. 2015. Internal DSM Business Memo.
  4. Hughes and Payne, 1937. Poultry Science 16:135
  5. Isler O, Lindlar H, Montavon M, Ruegg R, Saucy G, Zeller P. (1956), Chem. Soc. Helv. Chim. Acta 11, 716 Spec. Publ. 4,47.
  6. Miranda JF. 2017. O Dgital YolkFan. A ora du Ovo.
  7. McGraw KJ, Adkins-Regan E., and Parker RS. 2005. Naturwissenschaften (2005) 92: 375–380 DOI 10.1007/s00114-005-0003-z.
  8. Steinegger P, Zanetti G. (1957) Arch. Gefluegel, 236–245
  9. Streiff K. 1970. The Roche Colour Scale and the proper method of measuring yolk colours. Roche Carophyll Symposium. October, 13th, 1970. London, UK.
  10. Surai PF. 2012. Poultry Science. doi:10.1017/S0043933912000578
  11. Vuilleumier JP. 1969. The “Roche Yolk Colour Fan”– an instrument for measuring yolk colour. P. Sci. 48:767.
  12. Yao D. 2016. Tarso pigmentation guidelines for China. DSM ANH Marketing Meeting, Lisbon, Portugal.

Published on

13 June 2021


  • Carotenoids
  • Poultry
  • Layer
  • Tools

About the Author

Fernando Cisneros - Global Layer Solutions Lead

Fernando Cisneros is the Global Layer Solutions Lead. He holds a PhD (University of Illinois) and a MSc (UNAM, Mexico) on animal nutrition, and a BSc on Veterinary Medicine (U. Metropolitana, Mexico).

Fernando was a researcher (INIFAP) and then was hired by Roche Vitamins as technical manager in Mexico and Canada, account and sales manager for DSM Canada, before his current global role. He is passionate about egg quality, bright food and the sustainability of animal farming.
